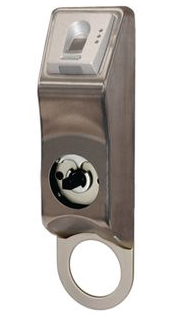

Fingerprint Codoor – EN Standard FP4000

Fingerprint Codoor, a complete reader unit suitable for fitting to a single door, incorporates an electronic fingerprint reader locking device and a power unit in the same housing.

Fingerprint Codoor offers the use of up to 32 different fingerprint templates and up to four 4-digit codes. These can be used in parallel with fingerprint reading. When Fingerprint Codoor is fitted, the outside door handle is disengaged and may be pressed down without opening the door. To open the door a finger has to be placed on the reader (or a code must be entered). The handle on the inside of the door is not affected by Fingerprint Codoor, and works normally for people leaving the premises.
FP4000 is suitable for lock cases with a distance of 72 mm between the center of the door handle and the center of the lock cylinder. It?s designed for European standard lock case, following DIN 18251 standard.

Operating temperature	0 to +50 °C
Operating voltage	9 VDC. Two batteries, 9V type 6LR61 (not included).
Dimensions (WxHxD)	70 x 255 x 54 mm
Sensor	Capacitive three-dimensional (requires that the finger is “alive”)
