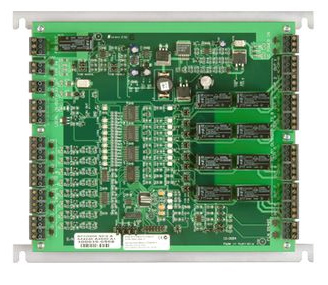

AFO5200 - Alarm Electronics Group

The AFO5200 is an advanced, multi-purpose module that provides an interface between field level input devices (such as PIR''s) and output devices (such as locking devices) to the advanced central controller AC5100.

Power supply	12/24 VDC (-15 to +10%)
Field bus	RS485 two wire, half-duplex
Inputs	8 x Isolated (internally supplied, unsupervised or supervised) 1 x Local input 1 x Fire override (potential-free or internally supplied)
Outputs	8 x Relays (30 VDC, 2 A) 1 x Local output (open-collector 9.7-12 VDC, 100 mA) 1 x Fire override relays (30 VDC, 2 A)
Firmware	Flash upgradeable
Operating temperature	0 to +50 °C (32 to 122 °F)
Dimensions (W x H x D)	250 x 210 x 40 mm
Power consumption	Max. 2 A at 12 V, max. 1.5 A at 24 V
