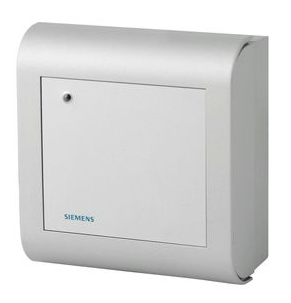

The AR6201-MX enrollment reader is designed to read and write cards using the ISO standards ISO14443-A, ISO14443-B and ISO15693. In combination with the “ConfigCard Creation Tool,” the AR6201-MX enrollment reader can be used to create configuration cards which are then used to conveniently program the AR618x-MX and AR6111-MX Readers.

The AR6201-MX enrollment reader comes with an RS232 serial interface, which allows it to be connected to a personal computer. An external power supply is also included.

Operating temperature	-25 to +60° C
Operating voltage	12 to 24 VDC
Current consumption	Max. 220 mA
Dimensions (WxHxD)	85.5 x 91 x 40 mm
Interface	RS232, 4800 – 38400 Baud
