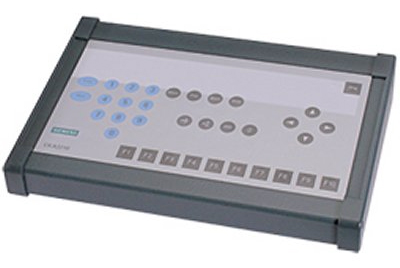

PTZ Controller CKA3210

The CKA3210 control unit is a stand-alone control and parameterisa-tion unit for video surveillance systems. The varied interfaces and functions result in made versatile system applications possible. The unit can be used as an external control unit for the SIMATRIX 164‚ 648‚ Neo and SYS video matrix units or for controlling several domes‚ cameras or other PTZ modules with telemetry capability in a point-to-point or star configuration.

The CKA3210 control unit can control peripheral units according to the SCU or CCDA protocol. Parameterisation using the con-trol unit is possible for peripheral units with on-screen display function. The unit features user-friendly operation‚ and has a compact design.

Control	Fixed speed telemetry functions‚ 35 keys on membrane keyboard
Display elements	Multi-color LED (red‚ orange‚ green)
Function keys	10
Serial interfaces	1 x control unit interface with two physical connections 1 x telemetry interface with one physical connection
Addressing	Selectable using DIP switches
Protocols	Selectable using DIP switches
Connections	COM1A - RS232 (9-pin Sub-D) COM1B - TTY modified (9-pin Sub-D) COM2 - RS485/TTY modified (9-pin Sub-D) 2-pin power supply connector
Housing	Aluminium‚ painted RAL7016 with plastic side panels
Protection rating	IP40
Dimensions (W x H x D)	255 x 50 x 170 mm
Power requirements	12 to 13.2 V DC
Power consumption	2.4 W
Weight	0.90 kg
