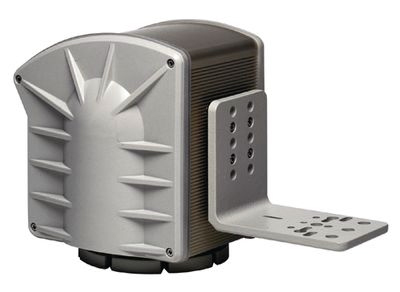

Поворотное наружное устройство PT40 Pot
Pan-tilt to allow the remote control of panning and tilting CCTV cameras, suitable
for mounting both indoors and outdoors. Separate pan and tilt drive units with
low-voltage motors and self-locking gears; adjustable pan and tilt ranges; aluminium
housing with drive shafts made of high quality stainless steel and with potentiometers
for position control to allow the programming of presets.
| Pan speed |
6°/s |
| Pan travel |
360° |
| Tilt speed |
3°/s |
| Travel limits |
Internally adjustable pan and tilt limits |
| Load rating |
20 kg |
| Tilt travel |
± 90° |
| Shell construction |
Extruded aluminium body |
| Plug connection |
13 pin |
| Potentiometer on both axis |
5 kOhm |
| Weight |
6.50 kg |
| Protection rating |
IP66 |
| Dimensions (W x H x D) |
140 x 211 x 336 mm |
| Power requirements |
24 V AC |
| Power consumption |
2 x 6.8 W |
| Colour |
RAL7032 (light grey) |
