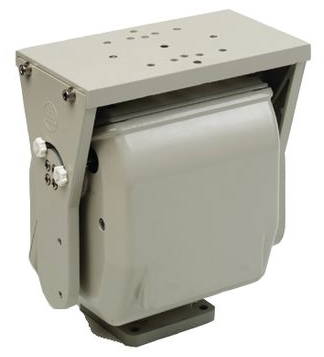

P25T-P Pan & Tilt head, 230 V AC

A robust, high-performance over-the-top mount AC Pan-Tilt unit (side mount optional). Allows reliable and accurate control of medium-heavy loads from 16 to 25kg, with thermostatic heater and heavy-duty presets as standard. Includes pre-wired cables (2m long).

Pan speed	6°/s
Tilt speed	12°/s
Load rating	16 kg (Over the Top) or 25 kg (Side mount)
Plug connection	7-pin plug (power supply) 4-pin plug (presets)
Potentiometer on both axis	yes
Weight	7.0 kg
Presets	Yes
Protection rating	IP66
Dimensions (W x H x D)	Side mount: 380 x 230 x 184 mm Over the top mount: 221 x 252 x 184 mm
Power requirements	230 V AC
Colour	Painted Polyester Powdercoat RAL7032 Leatherette Full Gloss
