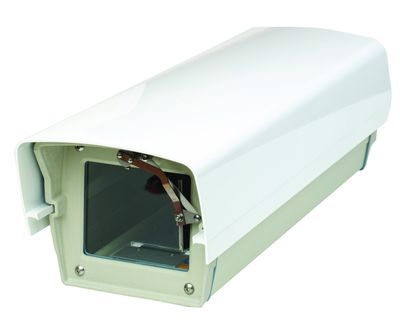

Large Connoisseur Housing 24 V AC HS01/L
HS01/L - Large Connoisseur Housing 24 V AC
Ideal for most applications, especially for larger length cameras and lenses.
Suitable for outdoor use. Extruded aluminium section construction. Sunshield
is adjustable along the length of the housing body. Hinge retained body allows
easy access for maintenance. Adjustable mounting plate to suit most camera/lens
assemblies. Demister & sunshield fitted as standard, optional wiper available.
| Heater
rating |
7
Watt nominal, 25 Watts max. PTC resistor
heating element. |
| Heater
turn-on |
14
°C |
| Heater
turn-off |
20
°C |
| Cable
entry |
1
x M25
2 x PG 13,5
1 x M16 |
| Finish |
Aluminium extrusion (housing body & sunshield),
glass filled polyester thermoset (front & rear caps)
|
| Protection
rating |
IP66 |
| Usable
volume (W x H x D) |
125
x 100 x 400 mm |
| Dimensions
(W x H x D) |
Housing:
155 x 148 x 627 mm
Sunshield: 560 x 168 mm |
| Weight |
6.0
kg |
| Power
requirements |
24 V AC, 50/60 Hz |
| Colour |
Housing
body: Polyester powdercoat RAL7032 leatherette full gloss.
Sunshield: Polyester powdercoat hipca white smooth full gloss. |
| Expansion
components: |
Wiper
kit, washer unit and 10 function telemetry receiver |
