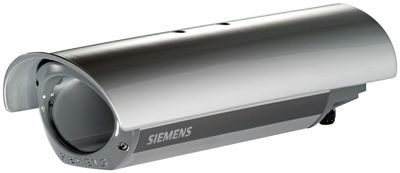

Защитный кожух камеры 300 мм CHSM2510
Camera Housing 300 mm, IP66, 1xM12, 1x M16, 1x M20
A stylish-looking, general purpose aluminium camera housing complete with anti-reflective
ABS polymer sunshield, plexi-glass face-plate with polycarbonate front and rear.
Ideal for any Siemens camera fitted with any Siemens monofocal or varifocal
lens. Three cable entries provide for power, video, control cable (RS485 for
camera etc) or system cable. The outer body of the housing is easily removed,
allowing in-situ adjustment of camera, lens and cabling. Included is a board
for easy connecting on all cable and a twisted pair transmitters. Supplied,
as standard, with a positive temperature coefficient heater element and thermostat.
Does not include power supply.
| Heater rating |
110 – 230 V AC, 40 W |
| Heater turn-on |
14° C ± 3° C |
| Heater turn-off |
20° C ± 3° C |
| Cable entry |
1 x M12, 1 x M16, 1 x M20 |
| Finish |
Centre section: extruded and die-cast aluminum,
Front and rear sections: robust plastic
|
| Protection rating |
IP66 |
| Usable volume (W x H x D) |
77 x 67 x 250 mm |
| Dimensions (W x H x D) |
137 x 129 x 466 mm |
| Weight |
3.20 kg |
| Colour |
Silver (RAL9006) |
