MJPEG IP Module for Indoor Vandal Resistant Domes

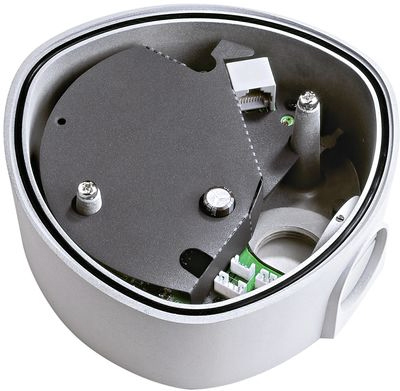

The IP module CVVA-IP is especially designed for use with the vandal-proof dome cameras CVVB1315‚ CVVC1315‚ CVVS1415. Existing fixed-dome camera systems can be easily upgraded to the latest IP technology. The integrated Web Server allows MJPEG compressed live images to be viewed using an http browser (Microsoft Internet Explorer from version 5.5 with Java plug-in or Mozilla or Netscape from version 7.0).

A live player for stand-alone solutions is supplied with the IP module. The live video images supplied by the device can be embedded in dedicated HTML pages without difficulty. The digital video streams can be saved directly using the digital video recorder SISTORE MX (from version V2.50).

Picture format	QCIF (176 x 144) CIF (352 x 288) 4CIF (704 x 576) (interlaced)
Network connections	10baseT Ethernet or 100baseTX Fast Ethernet‚ auto-sensing‚ full / half duplex
Security	separate passwords for image access and system configuration
Protocols	ARP‚ BOOTP/DHCP‚ TCP/IP‚ HTTP‚ ICMP‚ SNMP‚ FTP and DNS
	IP address configurable via ARP‚ BOOTP/DHCP‚ connection to twisted-pair RJ45 Ethernet.
Weight	0.62 kg
Power requirements	12 V DC / 24 V AC‚ 50 Hz
Power consumption	6 W
