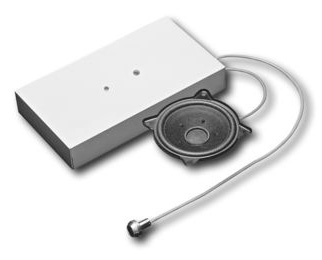

The DV451 showcase surveillance detector is used with intrusion detection
systems to protect showcases of various designs. The new detection principle
registers any kind of attack on the showcase promptly and reliably. The active
detection system is used in showcases with a volume of 100 to 2000 liter in
museums, art galleries and jeweler''s shops as well as for facade showcases.
| Supply |
9 ~ 16 VDC |
| Current consumption |
45 ~ 120 mA (12V quiescent)
100 ~ 150 mA (12V on alarm)
|
|
Alarm outputs
- relay contact
- alarm holding time
- alarm indicator
|
100 VDC / 0.4 mA / 10 W
5s
LED
|
|
Local horn relay:
- contact load
|
changeover contact
24 VDC / 1A or 120 VAC / 0/5 F
|
|
Control input
- inhibit horn
|
LOW < 1 V (2mA) / HIGH > 3.5 V
|
| Interface RS232 |
5 V |
| Loudspeaker 1 |
(small) type AD4061/W8 |
| Loudspeaker 2 |
(large) type W17OS/W8 |
| Microphone |
type WM 034DBU |
| Sensitivity |
4 levels |
| Response time |
4 steps |
| Showcase volume |
100 ~ 2000 liter |
| Operating temperature |
0 ~ +50 C |
| Storage temperature |
-10 ~ + 60 C
|
| Humidity (EN60721) |
< 95% r.F. non condensing |
| Housing protection category |
IP31 |
| VdS |
G197014 |
| CE |
in conformity |
