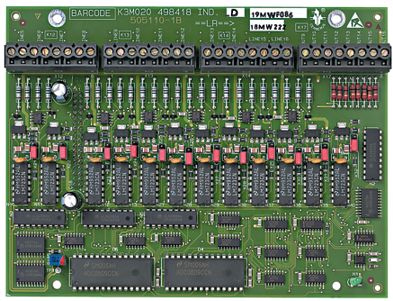

12 conventional lines expansion card K3M020

K3M020 is a line expansion card for 12 conventional lines. The card may be used to enable existing conventional detectors to be added to the system or for special applications. Each line can have up to 32 detectors with the SynoLINE300 or SynoLINE600 specification. K3M010 or K3M020 may be placed in the fire control panel.

Quiescent current	34 mA without detectors, but lines terminated 72 mA with 12 fully loaded lines
Programmable output	8 x 24 VDC / 48 mA
Conventional line	12
Consumption in alarm per line	+40 mA
