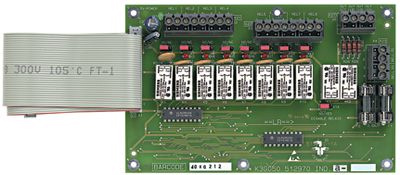

Relay card K3G050

The relay card offers additional outputs for fire controls such as activation of fire doors or air vents.

Quiescent current	20 mA
Supervised output	2 x 24 VDC / 500 mA
Programmable output	4 x 24 VDC / 48 mA
Consumption per activated relay	+9 mA
Relay outputs	8 x 30 VDC / 2 A
